This guide covers the CPDLC Plugin for vatSys. It explains how to connect to the server, interpret track labels, manage CPDLC messages with pilots, and use ADS-C.

Connecting to the CPDLC Server​

To connect, open the CPDLC menu and select Setup. Verify the server URL and station ID, then click Connect.

The station you select is your primary ATSU. Once connected, you can send and receive messages for any ATSU managed by that server. This allows controllers to extend their jurisdiction across FIR boundaries (e.g., Brisbane Centre extending to Melbourne Centre) when both ATSUs share a server.

Track Label Item​

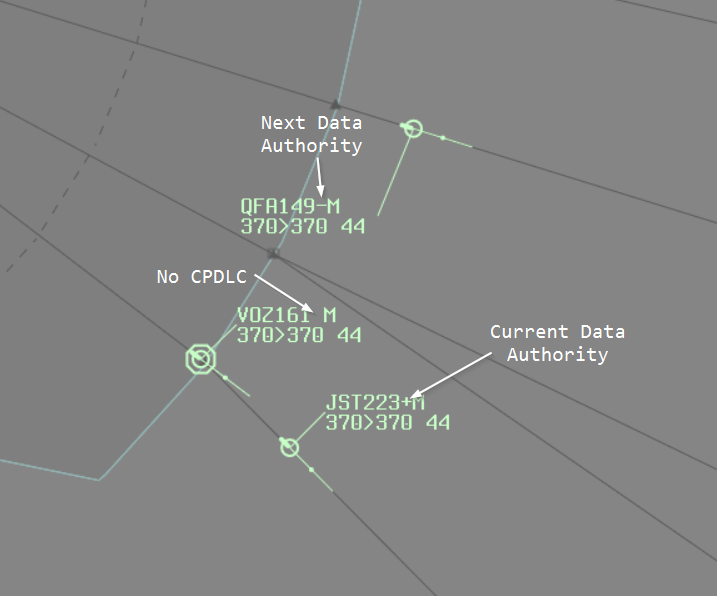

Screenshot of CPDLC track label items

The CPDLC track label item shows the connection status of each aircraft.

The connection status is denoted by the following symbols:

  • (blank): Aircraft is not CPDLC capable
  • .: Aircraft is connected to the ACARS network and available for logon
  • -: Aircraft has logged on, we are the Next Data Authority
  • +: Aircraft has logged on, we are the Current Data Authority

The background of the item will change when a downlink message has been received and is awaiting response. The colour of the symbol will change when an UNABLE response has been received.

Left-clicking the label item opens the CPDLC Editor. If there are open downlink messages, the most recent one is automatically selected.

If the aircraft is not already logged on, left-clicking sends a CONNECTION REQUESTED message to initiate a controller-initiated logon.

Current Messages Window​

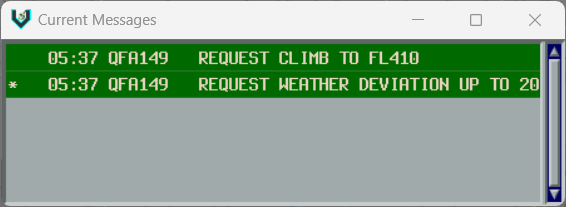

Screenshot of the Current Messages Window

The Current Messages Window shows open CPDLC dialogues for aircraft in your jurisdiction. It opens automatically when there are open dialogues and closes when all dialogues are resolved.

A dialogue is considered within your jurisdiction if any of the following conditions are met:

  • You are currently tracking the aircraft
  • You have sent at least one uplink message in the dialogue
  • The aircraft is not tracked by anyone and is in an Announced state
  • You were the last owner and the aircraft is no longer tracked by anyone

Reading Messages​

Messages are colour-coded to indicate their state. The specific colours may vary between vatSys profiles. Refer to local procedures for your specific colour coding.

Unacknowledged messages appear with inverted colours. Left-click a message to acknowledge it (mark as read).

Message indicators:

  • *: Message is truncated. Right-click to expand.
  • P: Message contains free-text.
  • !: Message is urgent.

Once a dialogue is closed and acknowledged, all messages within the dialogue are moved to the History Window.

Responding to Messages​

Left-click the callsign to open the action menu. The available options depend on the message state.

For downlink messages (pilot requests), each menu item sends the corresponding uplink response to the pilot. For example, selecting STANDBY sends the STANDBY message.

Additional actions:

  • MANUAL ACK: Closes the message without a pilot response
  • RE-ISSUE: Re-transmits a failed message
  • HISTORY: Moves the dialogue to history
Message ordering

Messages are grouped by dialogue, not strictly by time. This means messages from different dialogues may appear out of chronological order, even though they are correctly ordered within each dialogue.

01:30: QFA1     REQUEST CLIMB TO FL370
01:31: QFA1     STANDBY
01:35: QFA1     CLIMB TO FL370
01:36: QFA1     WILCO
01:32: VOZ2     REQUEST WEATHER DEVIATION UP TO 20 NM LEFT OF ROUTE
01:33: VOZ2     CLEARED TO DEVIATE UP TO 20 NM LEFT OF ROUTE
01:33: VOZ2     WILCO

Editor Window​

The Editor Window is used to compose uplink messages and respond to downlink requests from pilots. The window operates in two different modes depending on whether you are composing a new message or responding to a pilot request.

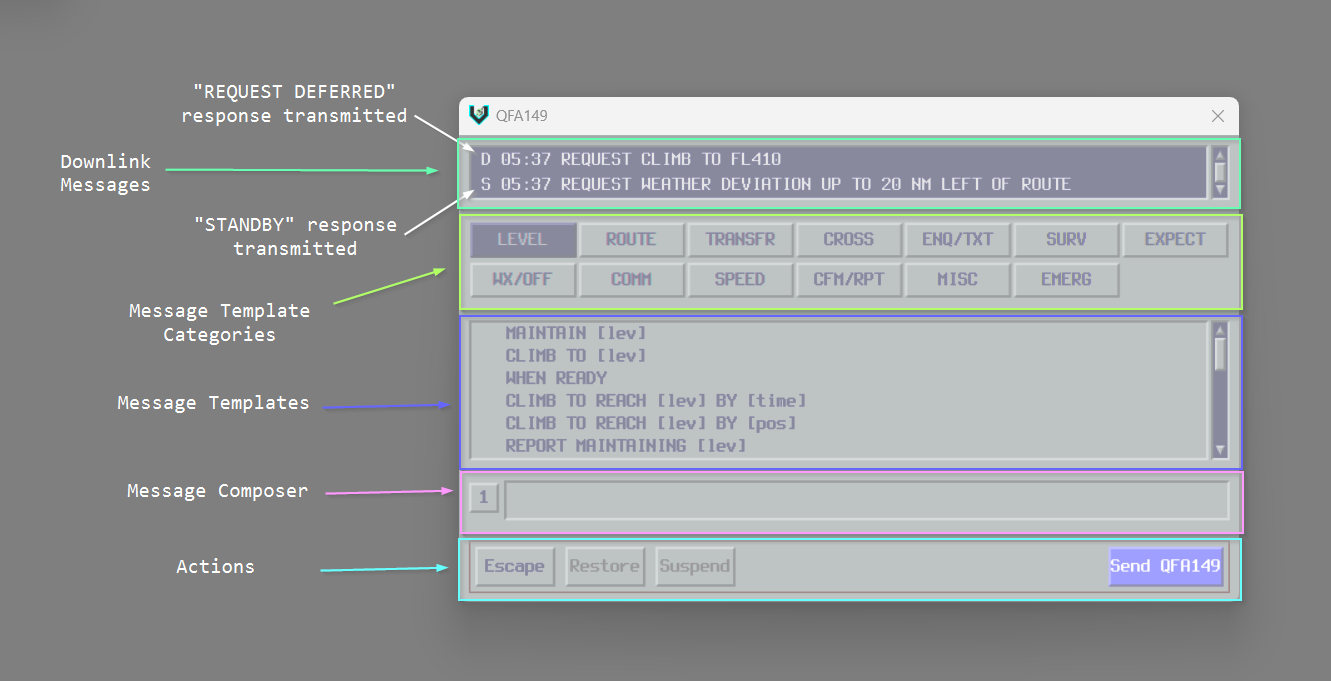

Screenshot of the Editor Window

Window Layout​

The editor window is divided into several sections:

  • Downlink Messages Area: Displays any received downlink messages from the pilot that require a response
  • Category or Quick Actions Panel: Shows message category buttons or quick-action response buttons depending on context
  • Message Templates Area: Lists available message templates from the selected category
  • Message Construction Area: Where uplink messages are constructed
  • Action Buttons: Provides Escape, Suspend, Restore, and Send buttons

This area shows any received downlink messages from the pilot that are awaiting a response. The most recent downlink message is selected automatically when the window opens.

Interacting with downlink messages:

  • Left-click a message to select it (which displays quick action buttons) or click again to deselect it (which shows message categories)
  • Right-click a message to expand it if it has been truncated

Message Categories​

When no downlink is selected, message category buttons are displayed in a grid. Click a category button to view the message templates available in that category.

When no category is selected, the editor displays frequently used messages that are always available for quick access.

Quick Actions​

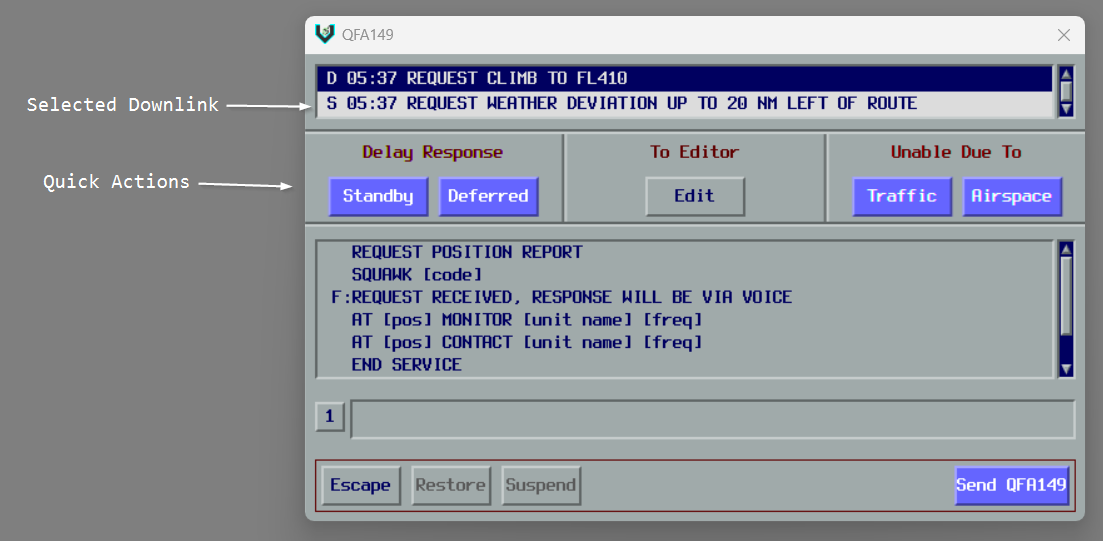

Screenshot of the Editor Window

When a downlink message is selected, quick-action buttons are displayed instead of message categories. These buttons are organized into three sections:

Delay Response:

  • Standby: Sends a STANDBY message to acknowledge the request while you coordinate
  • Deferred: Sends a REQUEST DEFERRED message to defer the pilot's request

To Editor:

  • Edit: Dismisses the quick actions and displays message categories so you can compose a custom response

Unable Due To:

  • Traffic: Sends UNABLE DUE TO TRAFFIC in response to the request
  • Airspace: Sends UNABLE DUE TO AIRSPACE RESTRICTION in response to the request

To build an uplink message, click a message template in the message templates area. The template will be added to the message construction area.

If you have a message element selected in the construction area, clicking a template will replace that element. Otherwise, the template will be appended to the end of the list. You can combine up to 5 message elements in a single uplink.

Message templates may contain editable parameters enclosed in brackets (for example, [level] or [freq]). Some templates have default values that are pre-filled for common scenarios.

Working with message elements:

  • Left-click the line number: Select or deselect that message element
  • Right-click the line number: Insert a new blank element above the clicked element
  • Middle-click the line number: Clear the element's content, or remove it entirely if it's already blank

Editing template parameters:

  • Left-click a parameter (such as [level]) to begin editing it
  • Middle-click a parameter to clear its value
  • Press Enter to save your changes, or Escape to cancel editing

When the uplink is sent, multiple message elements are automatically joined together with . as a separator.

Action Buttons​

Escape: Clears all message elements from the message construction area.

Suspend: Saves the current message for later use. You can only have one suspended message per aircraft at a time. You cannot suspend messages when quick actions are displayed or when responding to a downlink.

Restore: Loads a previously suspended message back into the message construction area.

Send: Transmits the uplink message to the aircraft. If you are responding to a downlink message, the dialogue will be closed. The editor window will close automatically if there are no remaining downlinks that require a response.

History Window​

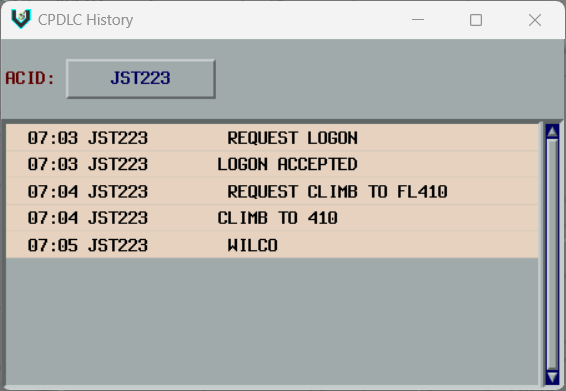

Screenshot of the History Window

The History Window shows previously completed dialogues. Use it to review past conversations with an aircraft.

Enter a callsign in the ACID input to display that aircraft's message history. Only one aircraft can be viewed at a time.

Messages are displayed the same way as in the Current Messages Window. Messages prefixed with M were manually acknowledged by the controller.

ADS-C​

The plugin shows ADS-C position reports on the ASD, and lets you change the ADS-C contract with an aircraft. Refer to ADS-C for an explanation of contracts.

You do not have to do anything to start ADS-C. When an aircraft logs on with CPDLC, the server automatically requests the default contract.

ADS-C Tracks​

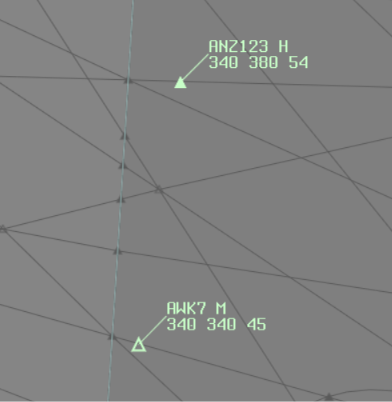

Screenshot of an ADS-C track on the ASD, next to the same track after extrapolation. Show the ADSC symbol and the ADSCExtrapolated symbol.

When a report arrives, the flight plan track of the aircraft moves to the reported position, and shows the ADSC symbol. The reported altitude becomes the pilot reported level (PRL) of the flight plan.

After a short time, the track moves along the flight plan route from the reported position, and shows the ADSCExtrapolated symbol. The plugin uses the route estimates of the flight plan to calculate the speed of the track.

The vatSys profile sets how the symbols look, so the exact symbols may vary. By default, the ADSC symbol is a filled triangle, and the ADSCExtrapolated is a hollow triangle.

A radar track always has priority. When the flight plan is coupled to a radar track, the plugin does not move the track.

ADS Contract Window​

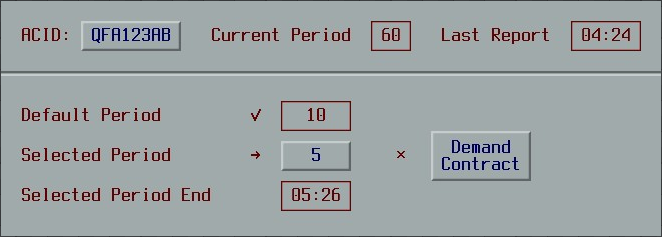

Screenshot of the ADS Contract window with an aircraft loaded.

The ADS Contract Window shows the ADS-C contract that your ATSU has with an aircraft. You can use it to select a different reporting interval, or to request a demand report.

To open the window, select a track, then open the CPDLC menu and select ADS Contract. The window shows the contract for the selected track.

To show a different aircraft, click the ACID button, type the callsign, then press Enter.

The window shows:

  • Current Period: The reporting interval of the latest periodic contract, in minutes
  • Last Report: The time of the latest report from the aircraft
  • Default Period: The default reporting interval of your ATSU, in minutes
  • Selected Period: The reporting interval that a controller selected, in minutes. DEF shows that the default period is selected.
  • Selected Period End: The time when the selected contract ends. Then the server requests the default contract again.
  • Source: The source of the latest report. Hoppie is a report from the aircraft through ACARS. VATSIM is a server-generated report using VATSIM data when there is no report from ACARS.

A symbol next to each contract shows the state of the request:

  • →: The request was sent. The aircraft has not answered.
  • ✓: The aircraft accepted the request.
  • ×: The aircraft rejected the request.

Selecting a Reporting Interval​

  1. Click the Selected Period button. A list of periods opens.
  2. Click a period in the list, or type a period (in minutes) in the box at the bottom of the list, then press Enter.

The server sends the request to the aircraft immediately. The selected contract ends after a time that the server sets (60 minutes by default).

To go back to the default contract before the selected contract ends, click DEF in the list.

Requesting a Demand Report​

Click Demand Contract to request one report from the aircraft immediately. A demand report does not change the periodic contract.

tip

Because of the delays on Hoppie's network, a demand report can take up to two minutes to arrive.

Voice Capability Indicators​

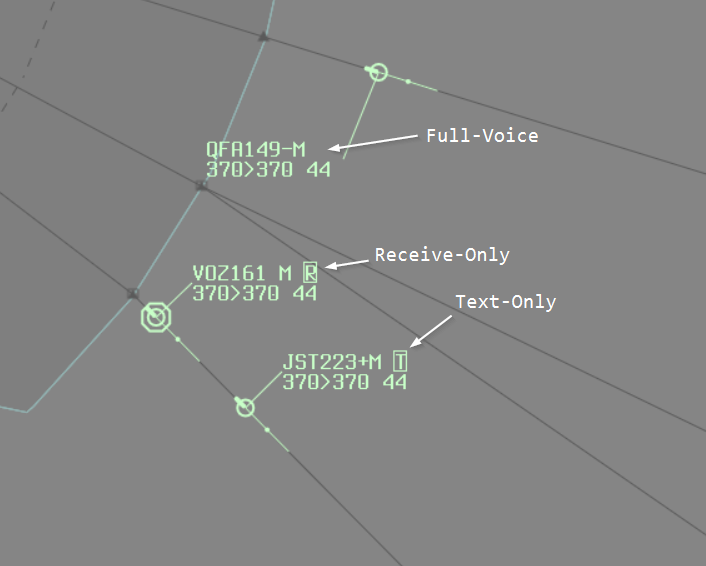

Screenshot of voice capability label items

vatSys uses the real-world CPDLC track label symbols (., -, +) to indicate voice capabilities. With this plugin introducing CPDLC functionality, those symbols are now used for their intended purpose. The plugin provides a replacement label item for voice capability to avoid confusion.

The replacement label shows the aircraft's voice capability:

  • (blank): Aircraft is fully voice-capable
  • R: Aircraft is receive-only
  • T: Aircraft is text-only
  • V: Aircraft is voice-capable (only displayed when a text message has been received)

The background colour will change to indicate that a text message has been received.

Left-clicking on the label item will open the text message editor.

Automatic Actions​

The plugin handles certain actions automatically without controller input.

Logon: Pilot logon requests are automatically accepted by the server.

Next Data Authority: Automatically calculates next data authority from aircraft route and online ATC. Transmits NEXT DATA AUTHORITY uplink prior to airspace entry. Errors display in vatSys error window if CPDLC logon code conflicts occur or cannot be found.

Connection Termination​

When handing off an aircraft or ending CPDLC service, controllers must manually send END SERVICE messages using the CPDLC editor.

END SERVICE Behavior​

The END SERVICE uplink terminates the CPDLC connection after the dialogue closes:

  • Standalone END SERVICE: Connection terminates immediately since the message requires no response
  • With frequency instructions: Connection remains active until the pilot responds (e.g., "END SERVICE. CONTACT MELBOURNE ON 123.45" or "END SERVICE. MONITOR SYDNEY ON 118.60" waits for WILCO before terminating)

This ensures pilots can acknowledge frequency change instructions before losing CPDLC connectivity. The aircraft will disappear from the Current Messages window once the connection terminates.

Limitations​

The plugin does not fully simulate all aspects of real-world CPDLC.

ADS-C: Only periodic and demand contracts are supported. Event contracts are not supported.

Equipment codes: Aircraft equipment codes are ignored. The . symbol indicates the aircraft is connected to an ACARS network, regardless of their filed equipment.

Troubleshooting​

Dialogues are not closing​

This usually happens when you send a response without having the original downlink message selected. The response starts a new dialogue instead of closing the existing one.

Use MANUAL ACK on the original downlink message to close it.
